Solid Extruded Brass Hardware

Plain Bearing Hinges

Plain Bearing Door Hinges

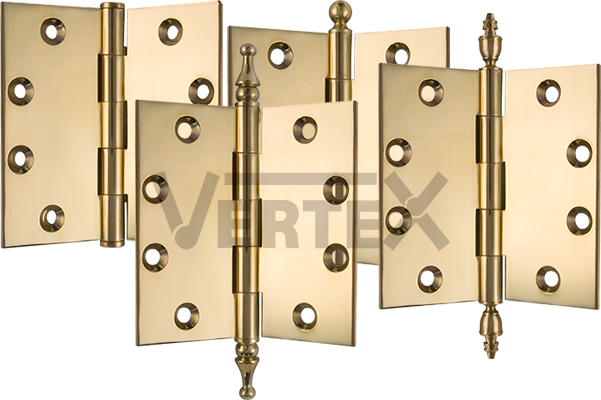

Choose your tip style

1. Button tips
2. Ball tips
3. Urn tips
4. Steeple tips
(All tips are threaded and removable.)

Materials used

  • Hinges: Solid extruded brass
  • Pins: Stainless steel
  • Tips: Solid extruded brass

Finishes

  • Polished brass (lacquered)
  • Polished brass (unlacquered)


Size Open
Length x Width
4½" x 4½" 4" x 4" 3½" x 3½" 3" x 3"
Metal thickness 0.134" 0.130" 0.123" 0.105"
Knuckle diameter 0.500" 0.500" 0.500" 0.500"
Number of holes 8 8 6 6
Wood screw size 12 x 1¼" 12 x 1¼" 10 x 1" 10 x 1"

Other sizes available through special order.
