Solid Extruded Brass Hardware

Narrow Range Cabinet Hinges

Ball tips

Narrow Range Cabinet Hinges - Ball tips, Polished brass (lacquered) Narrow Range Cabinet Hinges - Ball tips, Polished brass (unlacquered) Narrow Range Cabinet Hinges - Ball tips, Antique brass Narrow Range Cabinet Hinges - Ball tips, Satin nickel

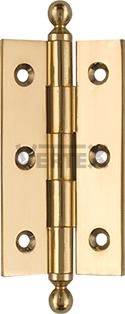

Polished brass
(lacquered)
Polished brass
(unlacquered)

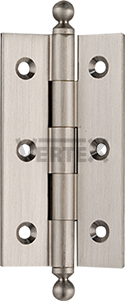

Antique brass Satin nickel

Materials used

  • Hinges: Solid extruded brass
  • Pins: Solid extruded brass
  • Tips: Solid extruded brass

Finishes

  • Polished brass (lacquered)
  • Polished brass (unlacquered)
  • Antique brass
  • Satin nickel



Size Open
Length x Width
3" x 1.5/8" 2.1/2" x 1.3/8" 2" x 1.1/8" 2" x 7/8" 1.1/2" x 7/8"
Metal thickness 0.063" 0.063" 0.063" 0.063" 0.063"
Knuckle diameter 1/4" 1/4" 1/4" 1/4" 1/4"
Number of holes 6 6 6 6 4
Wood screw size 4 x 5/8" 4 x 5/8" 4 x 5/8" 4 x 5/8" 4 x 5/8"

Other sizes available through special order.



Choose a different tip style

1. Fixed pin without tips
2. Button tips
3. Ball tips
4. Steeple tips
(All tips are threaded and removable.)
