Solid Extruded Brass Hardware

Ball Bearing Hinges

Steeple Tips

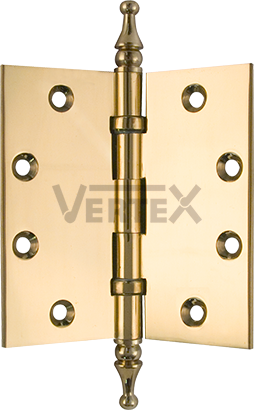

Ball Bearing Door Hinges - Steeple Tip


Materials used

  • Hinges: Solid extruded brass
  • Pins: Stainless steel
  • Tips: Solid extruded brass
  • Ball bearings: Solid brass casing with steel bearings

Finishes

  • Polished brass (lacquered)
  • Polished brass (unlacquered)



Size Open
Length x Width
4½" x 4½" 4" x 4" 3½" x 3½"
Metal thickness 0.134" 0.130" 0.123"
Knuckle diameter 0.500" 0.500" 0.500"
Number of holes 8 8 6
Wood screw size 12 x 1¼" 12 x 1¼" 10 x 1"

Other sizes available through special order.



Choose a different tip style

Button tip
Ball tip
Urn tip
Steeple tip

1. Button tips
2. Ball tips
3. Urn tips
4. Steeple tips
(All tips are threaded and removable.)
